As we rely more and more on technology to make our lives easier and safer, one of the most important advances has been the development of tire pressure monitoring systems, or TPMS. These systems track tire pressure and alert drivers when it falls below a safe level, helping to prevent accidents and extend the life of their tires. But have you ever wondered how TPMS knows which tire is which, especially when they're all rotating at the same speed? In this article, we'll take a closer look at the technology behind TPMS and how it distinguishes between individual tires.
Direct vs. Indirect TPMS
Before we dive into how TPMS identifies individual tires, it's important to understand that there are two types of systems: direct and indirect. Direct TPMS uses sensors mounted inside each tire to monitor pressure, while indirect TPMS uses the ABS wheel speed sensors to detect changes in tire size caused by low pressure. Direct TPMS is generally considered more accurate, but also more expensive and potentially more prone to failure, since the sensors are exposed to harsh conditions and can be damaged by potholes or other road hazards.
Direct TPMS

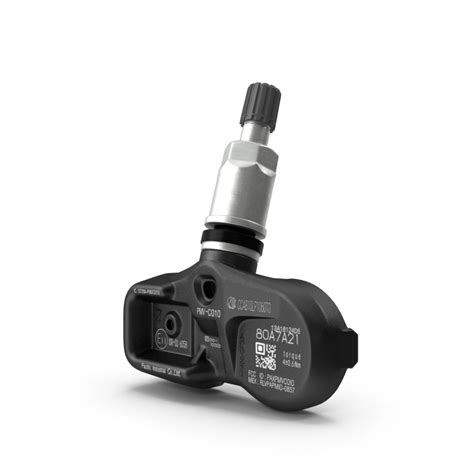

In a direct TPMS system, each tire is equipped with a small, battery-powered sensor that measures pressure and temperature. These sensors communicate wirelessly with a receiver located in the vehicle, which displays the readings on the dashboard and alerts the driver if pressure falls below a certain level. The sensors typically use radio frequency (RF) signals to communicate with the receiver, which can be programmed to identify each sensor by its unique ID code. The receiver then associates the ID code with the position of the tire on the vehicle, based on the order in which the sensors were installed.
Some direct TPMS systems may also use accelerometers or gyroscopes to detect changes in tire rotation caused by low pressure. By comparing the rotation speeds of each wheel, the system can identify the tire that's losing pressure and alert the driver. This method is less accurate than using sensors, but can be useful in situations where a sensor fails or is damaged.
Indirect TPMS
In an indirect TPMS system, tire pressure is inferred from changes in wheel speed, which are detected by the ABS wheel speed sensors. When a tire loses pressure, its diameter decreases, causing the wheel to rotate faster than the other wheels. The ABS system detects this difference and alerts the TPMS module, which then alerts the driver. Indirect TPMS is less accurate than direct TPMS, since it can't measure pressure directly, and may be affected by changes in tire size caused by wear or replacement.
How TPMS Identifies Individual Tires
Regardless of whether a TPMS system is direct or indirect, it needs to be able to identify each tire in order to provide accurate readings and alerts. There are several ways this can be done:
Position Learning
Some TPMS systems use a process called position learning to identify each tire. This involves manually inputting the ID code of each sensor into the TPMS module and associating it with the position of the tire on the vehicle. This process can be time-consuming and requires a special tool, but it ensures that the system is accurate and reliable.
Automatic Recognition
Other TPMS systems use automatic recognition to identify each tire. This involves placing the vehicle in a special mode that allows the sensors to transmit their ID codes to the receiver. The receiver then associates each ID code with the position of the tire on the vehicle, based on the order in which the sensors were installed. This method is faster and easier than position learning, but may be less accurate if sensors are replaced or moved between tires.
Conclusion
TPMS is an important safety feature that helps drivers monitor tire pressure and avoid accidents. Whether a system uses direct or indirect monitoring, it needs to be able to identify each tire in order to provide accurate readings and alerts. This is typically done using ID codes or position learning, and can be done manually or automatically. By understanding how TPMS works, drivers can ensure that their system is functioning properly and stay safe on the road.
