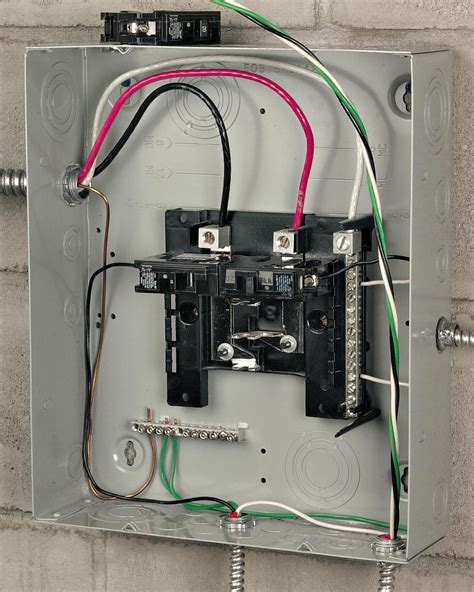

Moved Circuit to Sub Panel And Now It Blows the Subs Main Breaker from www.doityourself.com

If you're planning to upgrade your electrical system or add more circuits to your home, you may be considering installing an 80 amp sub panel. This type of panel can provide additional power to your home without overloading your main panel. In this article, we'll dive into the details of 80 amp sub panels, including their uses, installation, and safety considerations.

What is an 80 Amp Sub Panel?

An 80 amp sub panel is a type of electrical panel that can handle up to 80 amps of current. It is typically installed in a separate location from the main panel and is used to distribute power to specific areas of the home. Sub panels are often used when the main panel is full or when additional circuits are needed for a specific purpose, such as a new addition or a workshop.

Uses of an 80 Amp Sub Panel

An 80 amp sub panel can be useful in a variety of situations. For example, if you're adding a new room to your home, you may need additional circuits to power lights, outlets, and appliances. An 80 amp sub panel can provide the extra power you need without overloading your main panel. Similarly, if you're setting up a workshop or home office, you may need additional circuits for power tools or equipment. A sub panel can keep these circuits separate from the rest of your home's electrical system, making it easier to manage and maintain.

Installation of an 80 Amp Sub Panel

Installing an 80 amp sub panel is a complex process that should only be attempted by a licensed electrician. The first step is to choose a location for the sub panel. It should be located in a dry, accessible area, such as a utility room or garage. The electrician will then run a new feeder cable from the main panel to the sub panel location. The cable should be sized appropriately for the load and distance, and should be protected by conduit or cable tray. Once the cable is in place, the electrician will mount the sub panel and connect the feeder cable to the main breaker. The electrician will then install the individual breakers for each circuit, running wires from the sub panel to the outlets or appliances that need power. Finally, the electrician will test the system to ensure that everything is working properly and safely.

Safety Considerations for 80 Amp Sub Panels

As with any electrical system, safety is of the utmost importance when installing and using an 80 amp sub panel. Here are a few key safety considerations to keep in mind: - Always hire a licensed electrician to install your sub panel. Attempting to do it yourself or hiring an unlicensed contractor can lead to serious safety hazards. - Make sure the sub panel is properly grounded to prevent shocks or electrical fires. - Use the correct size and type of wire for each circuit. Overloading the wires can lead to overheating and electrical fires. - Label each circuit in the sub panel so you know which breaker controls which area of the home. - Never touch the sub panel or any of the breakers with wet hands or while standing in water.

Conclusion

An 80 amp sub panel can be a useful addition to your home's electrical system, providing extra power for specific areas or circuits. However, it's important to ensure that the sub panel is installed safely and correctly by a licensed electrician. By following the proper installation and safety procedures, you can enjoy the benefits of an 80 amp sub panel without putting your home or family at risk.
