When it comes to electrical installations, knowing the correct wire size to use is crucial. One of the most common questions that people ask when installing a 220v 60 amp circuit is what size of wire they need to use. This article will provide you with valuable information on how to determine the correct wire size for your 220v 60 amp circuit.
What is 220v 60 Amp Circuit?
A 220v 60 amp circuit is a type of electrical circuit that supplies power to high-demand appliances, such as electric furnaces, water heaters, and air conditioning units. This circuit requires a larger wire size than standard 120v circuits because it carries a higher current load.

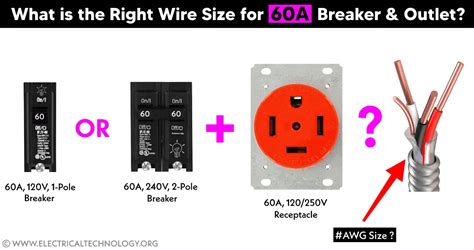

The 220v 60 amp circuit requires a wire with a minimum size of #6 AWG. However, the wire size needed may vary depending on the length of the circuit, the type of wire insulation, the ambient temperature, and the number of conductors in the circuit.
Factors to Consider When Choosing Wire Size
Length of the Circuit
The length of the circuit is one of the most important factors to consider when determining the correct wire size. The longer the circuit, the higher the voltage drop, which can cause appliances to malfunction or not operate at all. To avoid voltage drop, you need to use a larger wire size.
Type of Wire Insulation
The type of wire insulation is another factor that can affect the wire size needed for your 220v 60 amp circuit. There are two types of wire insulation: THHN and THWN. THHN wire is suitable for dry locations, while THWN wire is suitable for wet locations. THWN wire has a thicker insulation, which means it has a larger diameter than THHN wire. As a result, you may need to use a larger wire size if you choose to use THWN wire.
Ambient Temperature
The ambient temperature is another factor that can affect the wire size needed for your 220v 60 amp circuit. Higher ambient temperatures can cause the wire to overheat, which can lead to a fire hazard. To avoid this, you need to use a wire size that can handle the temperature of the environment.
Conclusion
In conclusion, choosing the correct wire size for your 220v 60 amp circuit is crucial to ensure the safe and efficient operation of your appliances. When determining the wire size, make sure to consider the length of the circuit, the type of wire insulation, and the ambient temperature. Always consult with a licensed electrician if you have any doubts or questions about the wire size needed for your electrical installation.
