If you're looking for a powerful plug that can handle high voltage and current loads, the NEMA 50 amp plug is an excellent choice. This type of plug is commonly used in industrial and commercial applications, as well as in RVs and boats. In this ultimate guide, we'll provide you with all the information you need to know about the NEMA 50 amp plug, including its features, uses, and installation process.

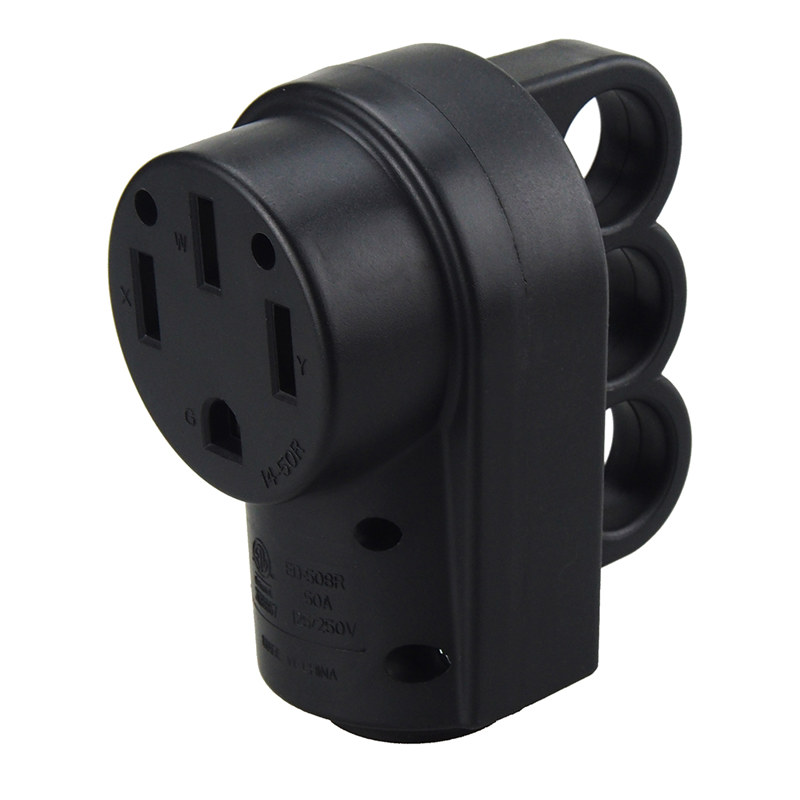

What is a NEMA 50 Amp Plug?
The NEMA 50 amp plug is a type of electrical connector that has a current rating of 50 amps and a voltage rating of 125/250 volts. It is commonly used for high-power applications that require a lot of electricity, such as large appliances, power tools, and electric vehicles. The NEMA 50 amp plug is also used in RVs and boats to provide a reliable source of power.
The NEMA 50 amp plug is designed to be durable and long-lasting, with a rugged construction that can withstand harsh environments. It features a locking mechanism that ensures a secure connection, as well as a grounding pin that provides additional safety.
Uses of a NEMA 50 Amp Plug
The NEMA 50 amp plug is used in a variety of applications, including industrial and commercial settings, RVs, boats, and homes. In industrial and commercial settings, it is often used to provide power to large machinery and equipment, such as compressors, generators, and welders. It is also used in data centers to power servers and other critical equipment.
In RVs and boats, the NEMA 50 amp plug is used to provide power to appliances, lighting, and other electrical devices. It is also used to recharge batteries and power air conditioning units. In homes, the NEMA 50 amp plug can be used to power large appliances, such as electric ranges and dryers, as well as to provide a backup power source during a power outage.
Installation of a NEMA 50 Amp Plug
Installing a NEMA 50 amp plug is a straightforward process that requires some basic electrical knowledge and tools. Before you begin, make sure that you have the necessary permits and approvals from your local building department.
To install a NEMA 50 amp plug, follow these steps:
Step 1: Turn off the power
Before you begin, make sure that the power is turned off to the circuit that you will be working on. This can be done by turning off the circuit breaker or removing the fuse that controls the circuit.
Step 2: Remove the cover plate
Remove the cover plate from the outlet box where you will be installing the NEMA 50 amp plug. This will expose the wiring and the screws that hold the outlet in place.
Step 3: Connect the wires
Connect the wires to the terminals on the NEMA 50 amp plug. The black wire (hot) should be connected to the brass terminal, the white wire (neutral) should be connected to the silver terminal, and the green or bare wire (ground) should be connected to the green terminal.
Step 4: Secure the NEMA 50 Amp Plug
Secure the NEMA 50 amp plug to the outlet box using the screws provided. Make sure that the plug is flush with the outlet box and that the cover plate can be installed without any gaps.
Step 5: Test the connection
Turn on the power to the circuit and test the NEMA 50 amp plug to make sure that it is working properly. Use a voltage tester to verify that the wiring is correct and that there are no voltage leaks or shorts.
Conclusion
The NEMA 50 amp plug is a powerful and versatile connector that can handle high voltage and current loads. It is used in a variety of applications, including industrial and commercial settings, RVs, boats, and homes. Installing a NEMA 50 amp plug is a straightforward process that can be done with some basic electrical knowledge and tools. By following the steps outlined in this guide, you can safely and effectively install a NEMA 50 amp plug and enjoy the benefits of its reliable power supply.
